CASIO CK-10: The Compact Keyboard with Built-in AM-FM Radio for Music and Entertainment

Description:

The Casio CK-10 is a unique and versatile portable keyboard that combines musical creativity with the convenience of AM/FM radio. Designed for beginners and casual players, this compact keyboard is perfect for those who want to explore music while enjoying the added functionality of a built-in radio.

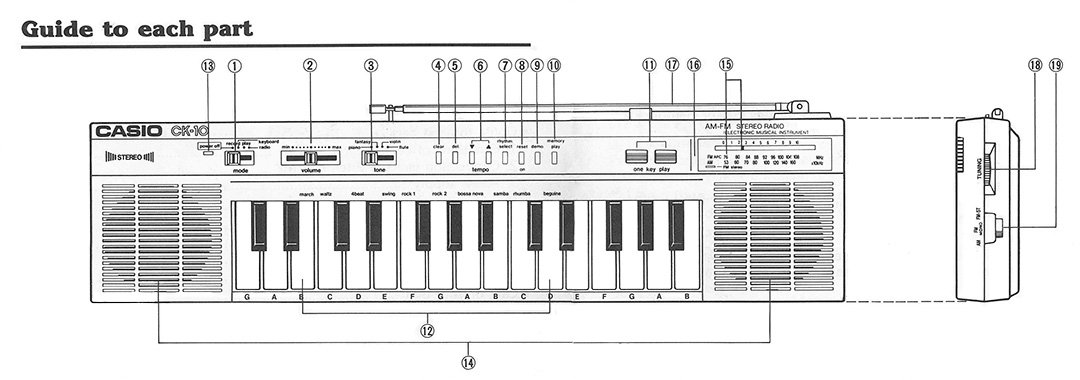

Functions of each button:

1. Mode Selector: Controls the power, record, play, and radio modes.
2. Volume Control: Adjusts the volume level.
3. Preset Sound Selector: Offers 4 instrumental sounds (piano, fantasy, violin, flute).
4. Clear Button: Clears previous memory contents in record mode.
5. Delete Button: Corrects mistakes in stored melodies.
6. Tempo Control: Allows selection of 19 tempos.
7. Rhythm Select Button: Selects one of 10 auto-rhythms.
8. Reset Button: Resets the memory and turns the power on after auto power-off.
9. Demo Button: Plays a preset German song.
10. Memory Play Button: Plays back stored melodies.
11. One Key Play Buttons: Plays notes stored in memory.
12. Rhythm Selection Keys: Selects rhythms after pressing the rhythm select button.
13. Power Lamp: Indicates power status.
14. Built-in Speaker (Left/Right): Provides sound output.
15. Dial/Dial Pointer: Used for tuning.
16. FM Stereo Indicator: Lights up when tuned to an FM stereo station.
17. Rod Antenna: Extends for FM radio reception.
18. Tuning Dial: Tunes to desired radio stations.
19. BAND Switch: Selects AM, FM MONO, or FM STEREO modes.

SPECIFICATIONS:

• Number of Keys: 29 keys (monophonic)
• Preset Sounds: 4 kinds (piano, fantasy, violin, flute)
• Built-in Rhythms: 10 kinds (march, waltz, 4 beat, swing, rock 1, rock 2, bossa nova, samba, rhumba, beguine)
• Memory Play Function: Manual memory
  memory capacity up to 100 notes;
  Auto-play;
  One Key Play
• Pitch Control: ±30 cents
• Radio Specifications:
  Frequency Bands:
  Received Frequency Ranges
  FM: 88 – 108 MHz (European countries), 87.5 – 108 MHz (U.S.A., Canada), (Middle East, Latin America, Southeast Asia, Africa, Oceania)
  AM: 520 – 1610 KHz (all regions)
• Antenna: FM telescopic antenna, AM ferrite bar antenna (Built-in)

• Speakers: Φ 6.5 cm x 2
• Output Jack: Output voltage = 1.5 V, Output impedance = 56 Ω
• Power Source: AC: 100, 220 or 240 V (using the AC adaptor AD-4160, option) DC: 4 AA-size manganese dry batteries
• Battery Life:
  Radio: SUM-3 about 10 hours, AM-3 about 20 hours
  Keyboard: SUM-3 about 10 hours, AM-3 about 20 hours

• Power Consumption: 1.85 W
• Item Dimensions: 42(H) x 411(W) x 110(D) mm
• Item Weight: 800 g (including batteries)
• Package Dimensions: 100(H) x 500(W) x 170(D) mm
• Packaging Weight: 1.5 KG
• Shipping Weight: 2 KG
